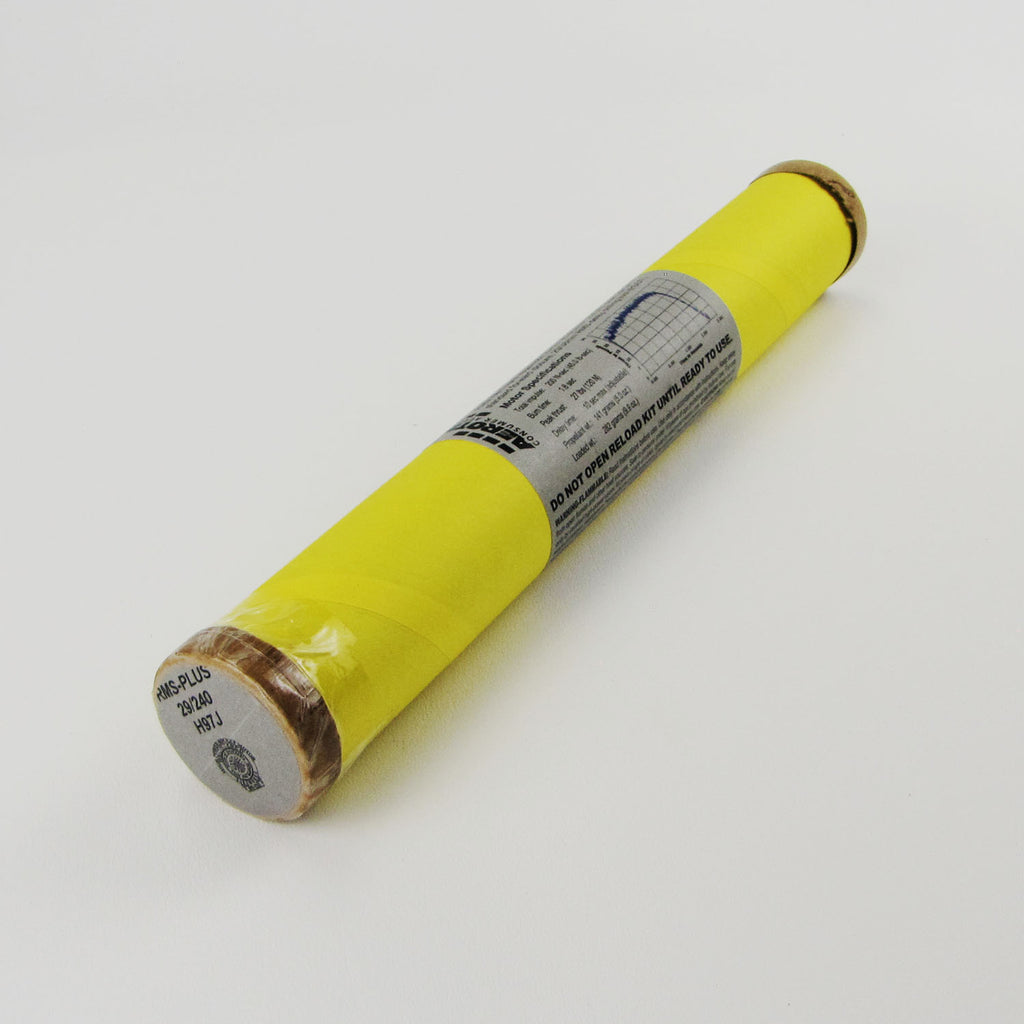

AeroTech H97J-10A RMS-29/240 Reload Kit (1 Pack) - 089710

  • Sale
  • Regular price $41.99
Shipping calculated at checkout.


The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-29/240 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), Not Included. The 18-38mm Delay Drilling Tool (RDDT) is available in the AeroTech Accessories section of this website.

This RMS motor reload utilizes RCSs exclusive Black Jack™ aerospace grade composite propellant formulation, which produces a visible black exhaust plume and a denser dark tracking smoke. Black Jack™ motors provide a higher level of thrust than White Lightning™ motors of the same total impulse and are perfect for high lift-off acceleration.

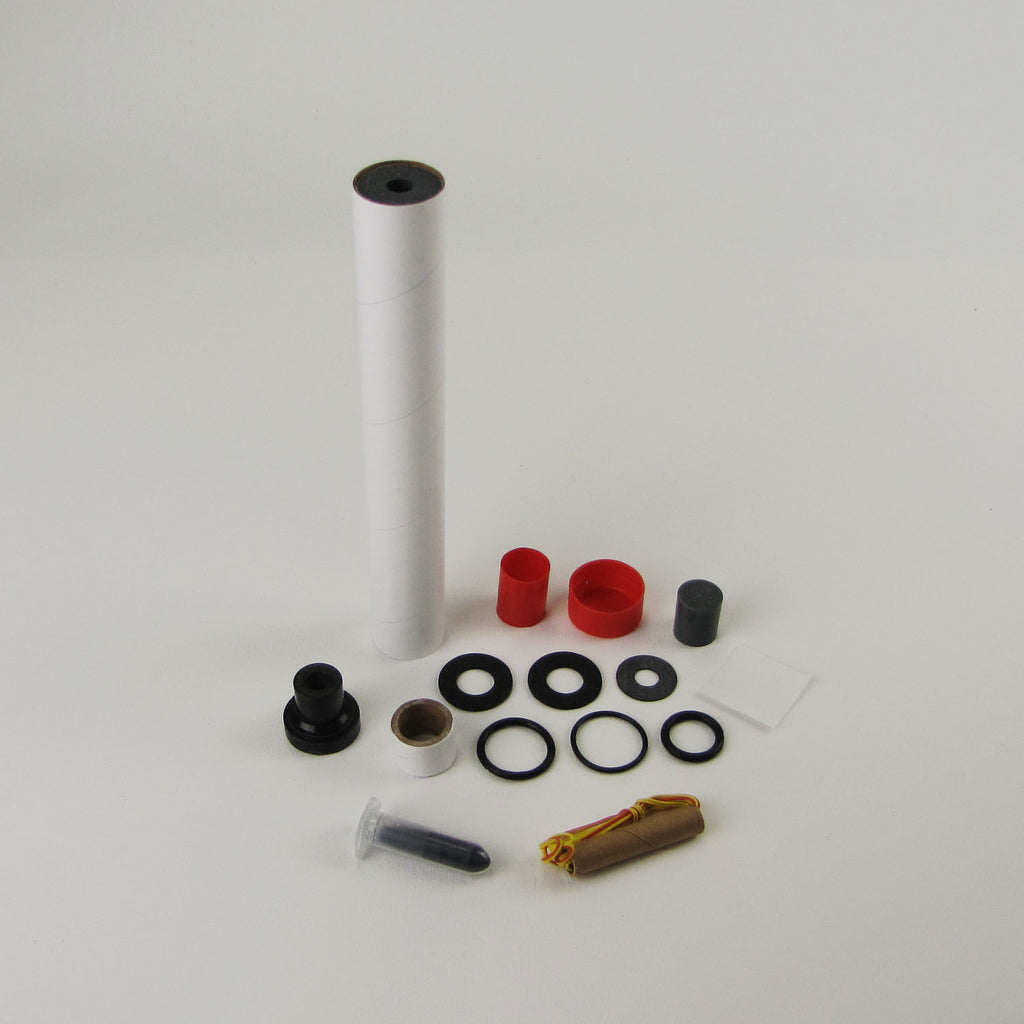

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 1 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

  • Specifications:

    Motor Diameter: 1.125 inches (29mm)

    Casing Length: 9.0 inches (228mm)

    Hardware Required: RMS-29/240

    Total Impulse: 177.3 N-sec

    Average Thrust: 97.0 newtons

    Peak Thrust: 111.5 N-sec

    Thrust Duration: 2.2 seconds

    Delay Time: adjustable up to 10 seconds

    Propellant Weight: 137 grams

    Motor Weight: 278 grams

    Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
